Let's build a telegraph between two @boardname@s.

~

Materials

• 2 @boardname@s, a battery holder, and 2 AAA batteries
• 4 crocodile clips

Steps

Step 1

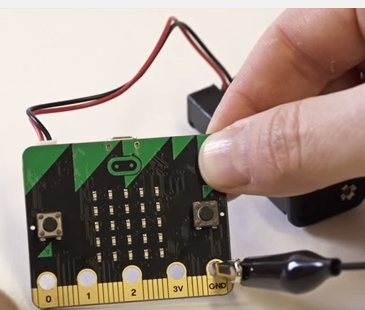

Connect the end of the 1st crocodile clip to the GND pin on the @boardname@.

Step 2

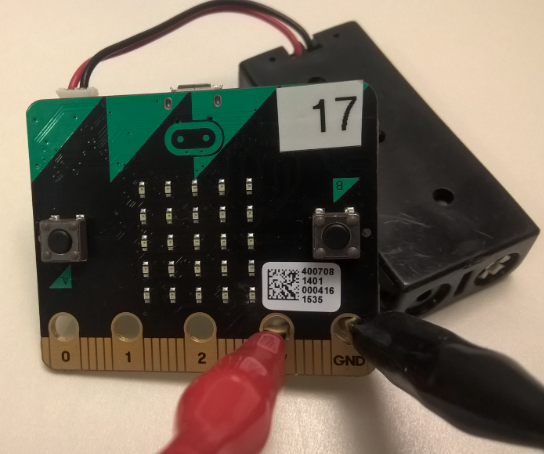

Connect the end of the 2nd crocodile clip to the 3V pin on the @boardname@.

Step 3

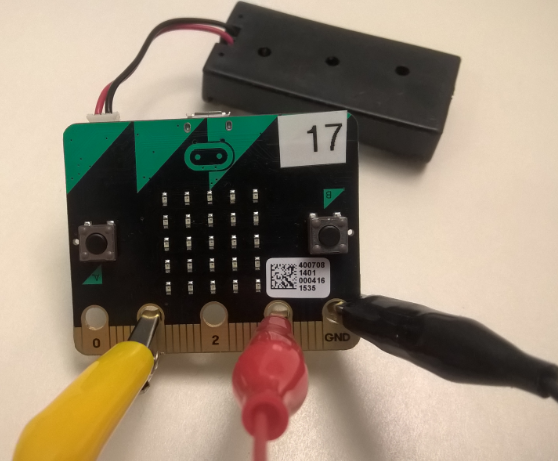

Connect the end of the 3rd crocodile clip to pin 1 of the @boardname@.

Step 4

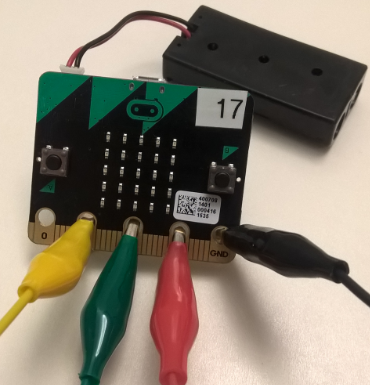

Connect the end of the 4th crocodile clip to pin 2 of the @boardname@.

Step 5

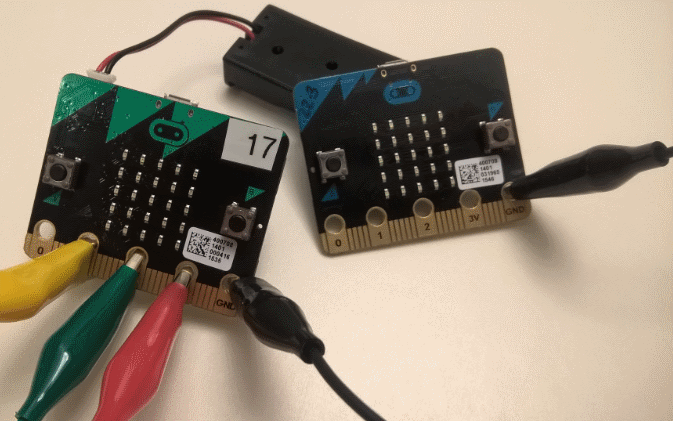

Connect the other end of the 1st crocodile clip to the GND on the second @boardname@.

Step 6

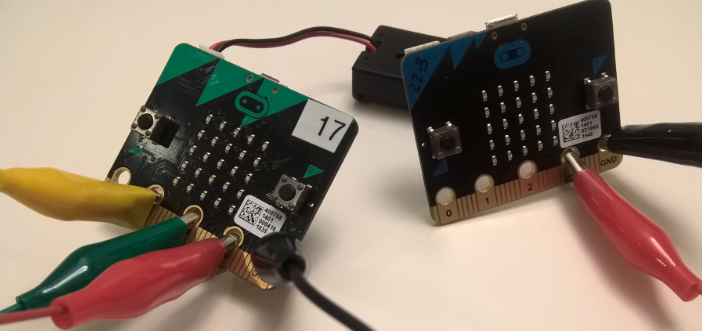

Connect the other end of the 2nd crocodile clip to the 3V pin on the second @boardname@.

Step 7

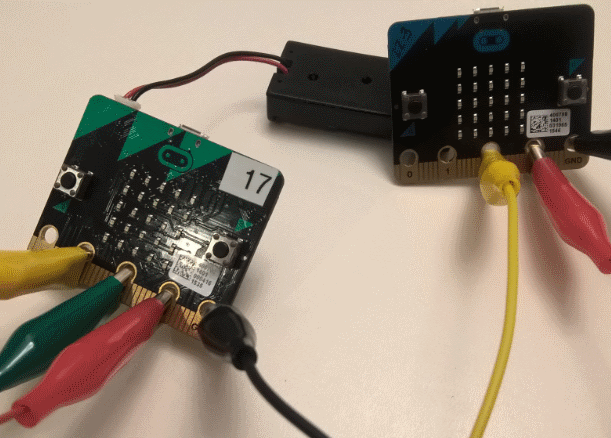

Connect the other end of the 3rd crocodile clip to pin 2 of the second @boardname@.

Step 8

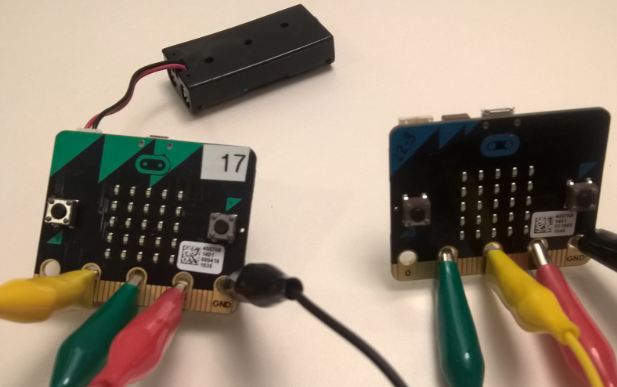

Connect the other end of the 4th crocodile clip to pin 1 of the second @boardname@.

Step 9
